Description

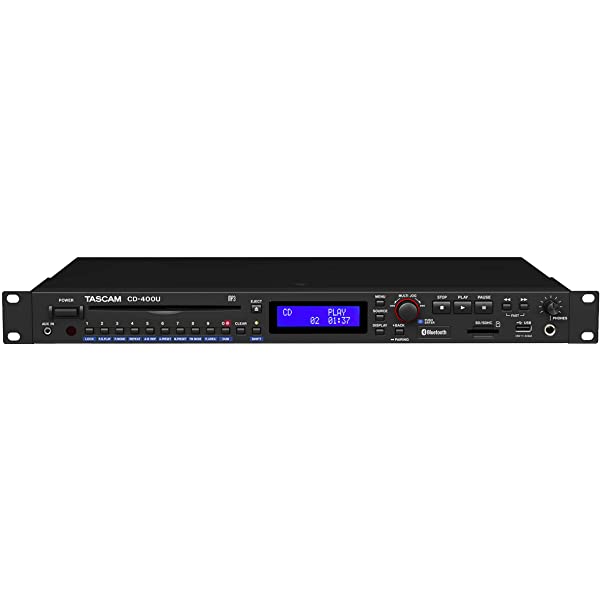

The CD-400U supports a wide range of media including audio CDs, data CDs, USB memory devices and SD and SDHC cards, supporting WAV, MP3, AAC and WMA formats. The CD-400U is ideal for contractors where playback of a wide range of media and files is required.Playback modes (continuous playback, single playback and random playback) can also be combined with repeat playback function settings (on/off) to suit a wide range of situations.
Features
- CD/SD/USB and FM/AM tuner realtime audio playback
- Wireless streaming from a Bluetooth-enabled device like a smartphone, tablet, or computer
- Analog audio outputs: XLR Balanced, RCA Unbalanced, and Headphone
- 1/8″ audio input for playback from any external source
- “Power on Play” function starts audio playback automatically when powered on
- “Panel Lock” function disables buttons to avoid unauthorized operation or programming
- Real time recording from CD or FM/AM tuner to SD or USB media
- External control via RS-232C
- Control via ethernet with optional IF-E100 ethernet card is planned in the future
Check out this in-depth video for a technical overview on the features and use of this powerful source device.
SPECIFICATIONS
| Supported media | |
| CD | CD, CD-R, CD-RW (only CD-DA format) |
| SD | SD card (512MB to 2GB), SDHC card (4GB to 32GB) |
| USB | USB Flash memory (512MB to 64GB) |
| File System | FAT16 / FAT32 |
| Playback file formats | |
| CD-DA | 44.1kHz, 16-bit |
| MP3 | 44.1k / 48k Hz, 32k to 320k bps and VBR (MPEG1/2 Audio Layer-3) |
| WMA | 44.1k / 48k Hz, 32k to 320k bps and VBR (WMA ver.9 standard, DRM not supported) |
| WAV (USB/SD only) | 44.1k / 48k Hz, 16-bit |
| AAC (USB/SD only) | 44.1k /48k Hz, 8k to 320k bps and VBR (MPEG4 AAC-LC (Audio stream)) |
| Number of channels | 2 (stereo), 1 (mono) |
| Dubbing file formats | |
| MP3 | 44.1kHz, 96k / 128k / 192k / 320k bps (96k / 128k bps with tuner) |
| Analog audio input | |
| AUX IN | |
| Connector | 1/8″ (3.5mm) Stereo mini jack × 1 |
| Nominal input level | –20dBV (0.1Vrms) |
| Maximum input level | –4dBV (0.63Vrms) |
| Input impedance | 10kΩ or more |
| Analog audio outputs | |
| UNBALANCED | |
| Connector | RCA Pin jack × 1 pair |
| Rated output level | –10dBV (0.316Vrms, when analog output level setting OFF) |
| Maximum output level (switchable) | +6dBV (2.0Vrms, when analog output level setting OFF) |
| Output impedance | 200Ω |
| BALANCED | |
| Connector | XLR 3-32 (1: GND, 2: HOT, 3: COLD) × 1 pair |
| Rated output level | +4dBu (1.23Vrms, when analog output level setting OFF) |
| Maximum output level (switchable) | +20dBu (7.75Vrms, when analog output level setting OFF) |
| Output impedance | 100Ω |
| Tuner output | |
| UNBALANCED | |
| Connector | RCA Pin jack × 1 pair |
| Rated output level | –10dBV (0.316Vrms) |
| Maximum output level | +6dBV (2.0Vrms) |
| Output impedance | 200Ω |
| Phones | |
| Connector | 1/4″ (6.3mm) Stereo phone jack × 1 |
| Maximum output | 20mW + 20mW (THD+N 0.1% or less, into 32Ω load) |
| Control input/output | |
| RS-232C | |
| Connector | 9-pin D-sub (female, inch-standard) |
| Bluetooth® | |
| Bluetooth® version | 4.2 |
| Output class | Class 2 (approximate transmission distance: 33 ft. / 10m)* The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic waves. |
| Supported profile | A2DP, AVRCP 1.0 |
| Supported A2DP codecs | SBC, AAC, Qualcomm® aptX™ |
| A2DP content protection | SCMS-T |
| Tuner | |
| Antenna connector | |
| FM | F-type (female) |
| AM | 2-pin push terminal |
| Frequency range | |
| FM | 87.5M to 108.0M Hz |
| AM | 522k to 1,629k Hz |
| Power | AC 100 – 240V, 50/60Hz |
| Power consumption | 10W |
| Dimensions (W×H×D) | 19.0″ × 1.8″ × 11.8″ / 482.6 × 45 × 300.5 mm |
| Weight | 7.3 lbs. / 3.3 kg |
| Operating temperature range | 5 to 35˚C / 41 to 95˚F |
| Permitted installation tilt | 30˚ or less |
| Included items | AC power cord, Wireless remote controller”RC-CD400”, a rack-mounting screw kit, FM antenna, AM antenna, Owner’s manual/warranty |
