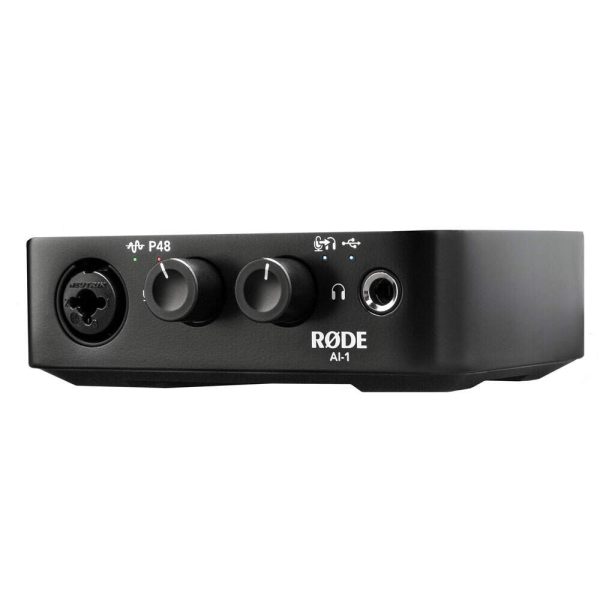

Rode AI-1 Studio-Quality USB Audio Interface

Description

RØDE’s AI-1 Audio Interface is packed with incredible technology to ensure recording on your computer is easy, versatile and sounds superb. The AI-1’s single input is a NeutrikTM Combo Jack, which takes both a 3-pole XLR (common to most microphones) and a quarter-inch jack common to most electric instruments like guitar, bass et al. Layering tracks is as easy as plug in, set level and go. Not only does the AI-1 deliver crystal clear audio to your computer software, but headphones have never sounded sweeter thanks to the discrete studio-quality headphone output and level control.

In the Box
Rode AI-1 Studio-Quality USB Audio Interface
USB Cable
Registration Card for Ableton Live Lite
Limited 2-Year Warranty

FAQs

How do I connect the microphone to my computer to record? –

This microphone has an XLR connection, so you will need a standard 3-pin XLR cable, as well as an audio-interface like the RØDE AI-1 or RØDECaster Pro, which will act as the bridge to your computer for recording. You can then use the microphone to record to a Digital Audio Workstation (DAW) like Pro Tools, Cubcase, Ableton, Logic, Garageband or Reaper to name a few, or similar audio recording software.



Specifications:

Computer Connectivity: USB
Form Factor: Desktop
Simultaneous I/O: 1 x 2
Number of Preamps: 1
Phantom Power: Yes
Bit Depth: 24-bit
Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Analog Inputs: 1 x Neutrik XLR-1/4” combo
Analog Outputs: 2 x 1/4” (impedance balanced), 1 x 1/4” (headphones)
Direct Monitor: Yes
USB: 1 x USB Type C
Bus Powered: Yes
OS Requirements: Mac OS 10.10 or later | Windows 7 or later
Power: USB bus-powered
Depth: 100mm total (with knobs)

chassis: 88mm
Width: 124mm
Height: 38mm
Weight: 1lb 3.7oz/560g

Input
XLR/MIC INPUT
Dynamic Range: 104dBA
Equivalent Input Noise @ Maximum Gain (Source Impedance 150 ohms, 20Hz-20kHz, A-weighted): –128dBA
Frequency Response: (Measured after ADC) 20Hz – 20kHz better than ±1dB
Gain Range: 0dB – >45dB
Gain Range: 1.3k Ohms

INSTRUMENT INPUT
Dynamic Range: 99dBA
Frequency Response (Measured after ADC) 20Hz – 20kHz better than ±1dB
Gain Range 0dB: – >45dB
Input Impedance: 900k Ohms

Output
MONITOR OUTPUTS
Maximum Output Level: -6dBu
Frequency Response: 20Hz – 20kHz better than ±1dB
HEADPHONE
Max output power at 1% THD 32Ohms: – >210mW | 300Ohms – >390mW
