DESCRIPTION

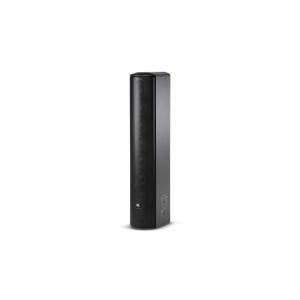

Constant Beamwidth Technology™ Line Array Column Loudspeaker with Eight 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.



The CBT 50LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.

FEATURES

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.
  • Swivel (pan) / tilt wall bracket included.







SPECIFICATIONS

Components Eight 50mm, (2 in) Full-Range
Frequency Range (-10dB) 80Hz – 20kHz
Coverage Pattern Vertical 20° (1.5 kHz – 16 kHz, ±10°)

Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)

Sensitivity (2.83V@1m) 93 dB (speech mode, 2 kHz – 14 kHz)

89 dB (music mode, 300 Hz – 18 kHz)

Nominal Impedance 8 ohms
Power Capacity (8ohm setting) 150W (600W peak), 2 hrs

100 W (400W peak), 100 hrs

Max SPL Speech mode: 115 dB cont ave (121 peak)

Music mode: 111 dB cont ave (117 peak)

70V/100V Transformer Taps 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch
Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Insert Points Ten M6 insert points on back panel.
Mounting Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt — see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D) 528 x 99 x 153 mm

(20.8 x 3.9 x 6.0 in)

Net Weight 4.1kg
Included Accessories Swivel (pan) / tilt wall bracket
Optional Accessories MTC-PC2 terminal panel cover

MTC-CBT-FM1 flush-mount low-profile wall-mount bracket

MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
