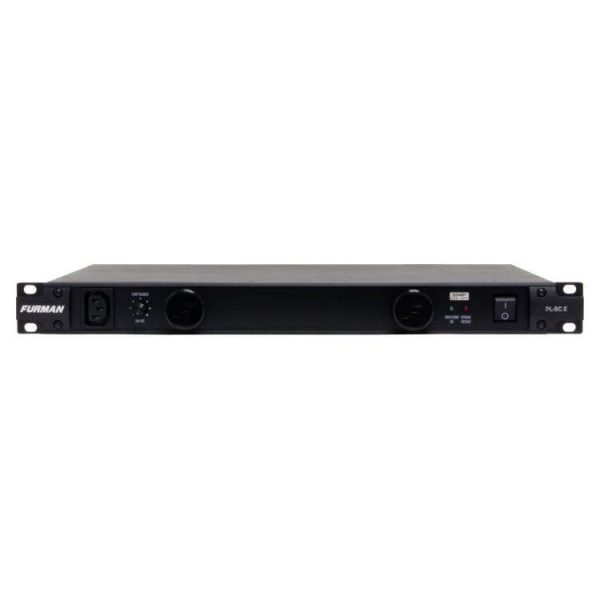

Furman PL-8C E 10A Power Conditioner w/Lights, 230V

Description

Furman PL-8C E 10A Power Conditioner w/Lights, 230V | Buy Furman direct from Singapore’s Authorized Distributor for warranty assurance.

DESCRIPTION
The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design.
The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world’s most advanced and comprehensive transient voltage surge supressors.

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner…You’re going to plug that into the wall? One big spike and your rig is up in smoke. Furman’s advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman’s advanced Linear Filtering Technology, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With Furman’s advanced Linear Filtering Technology you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman’s advanced advanced Series Multi-Stage Protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs and other event venues have some of the worst power out there – from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman’s advanced Series Multi-Stage Protection and LiFT keeps the bad stuff out and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes it toll – that’s why it’s smart to plug into Furman’s advanced Linear Filtering Technology. It keeps your equipment safe and sounding clean. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

FEATURES

Surge Protection
Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
Noise Filtration
LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
Voltage Protection
Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
Pull-out Lights
Dual smooth track retractable LED lights illuminate equipment in your rack.
Diagnostic Lights
LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
Isolated Banks
Isolated outlet banks minimize inter-component interference and noise contamination.
10 AMP Rating
10 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
11 Total Outlets
11 total outlets (10 rear panel outlets and one front panel convenience outlet).
BNC Lamp Connector
Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

In the Box
Furman PL-8C E Power Conditioner

Sales within Singapore: “Products are supplied with a standard 1-year warranty supported through the Singapore Authorised Distributor for Furman”

Sales to customers outside of Singapore: Products are supplied with a standard 1-year warranty. RMA requests will be coordinated through Singapore.



Specifications:

General
Family Classic Series 240V
Line Voltage 240 (Volts)
Power Requirements 240
Number of Outlets 11
Number of Isolated Banks 2
Outlet Descriptions All 11 outlets linearly filtered and surge protected
Rack-Mountable Yes
Rack Ears Included Yes
Front Panel Meter(s) No
Front Media Light(s) 2 multi-LED, dimmable lamps
Control On/Off switch and light dimmer knob on front panel.
Voltage Regulation N/A
Compliance CE
Dimensions 482.6mm W x 266.7mm D x 44.5mm H
Power Consumption 12 Watts

AC Protection
AC Protection Technology Extreme Voltage Shutdown

Series Multi-Stage Protection
Non-sacrificial protection with zero ground contamination

Under-Voltage Shutoff 180V
Over-Voltage Shutoff 274V
Maximum Current Rating 10 (Amps)
Initial Clamping Level 375 VAC peak @ 3,000 Amps

Filtration
Filtration TechnologyLiFT
Filtration Rating
10 dB @ 10 kHz
40 dB @ 100 kHz
50 dB @ 500 kHz

Signal Line Protection N/A

Shipping Info
Length 21.6 (Inches)
Width 14.8 (Inches)
Height 4.2 (Inches)
Weight 11.35 (Lbs)
Unit of Measure Each
UPC 654061028093
Master Pack Qty 2

Other Specifications
Power Cord 3/1.0MM AWG, 2.5M cord w/IEC female to 10A Schuko plug
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)
Response Time 1 nanosecond
Peak Impulse Current 6,500 amps
Rear BNC Connector Rear rack lamp, 12VAC 500MA max (lamp not included)
