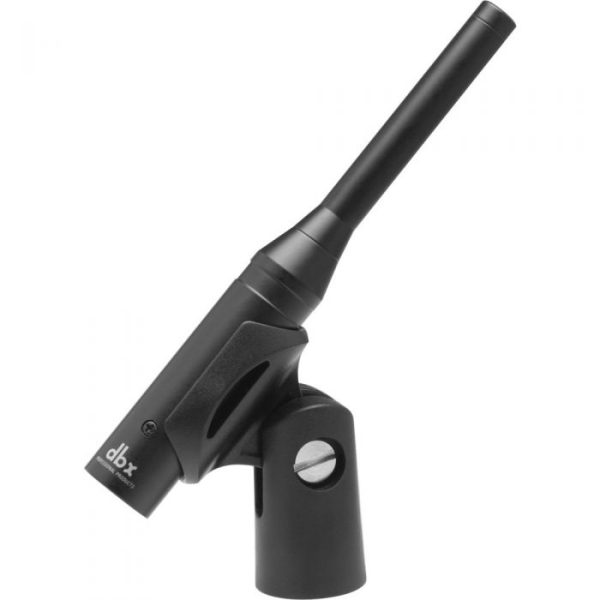

dbx RTA-M Reference Microphone

Description

The optional RTA-M real time audio analyzing mic is the perfect accessory tool for the DriveRack PA series (PA, PX, PA+, PA2) and 260. Used in conjunction with the System Setup Wizard and Auto EQ Wizard the RTA-M is ideal for optimizing the sound quality of even the most difficult of acoustic environments.

The RTA-M is an omni-directional, flat frequency measurement microphone specially designed for the Driverack series to pick up all frequencies from 20 Hz to 20 kHz , ensuring accurate “pinking”/real-time analysis of your audio. It runs on phantom power (supplied by the Driverack units) and comes with a clip and case.



  • Polar Pattern : omni-directional
  • Element : back electret-Condenser
  • Frequency Response : 20 Hz – 20 kHz
  • Impedance : 250 30% (at 1,000Hz)
  • Sensitivity : -63 dB +-3 dB ( 0 dB=1V/ microbar 1,000 Hz indicated by open circuit )
  • Operating Voltage : phantom power 9V-52VDC
