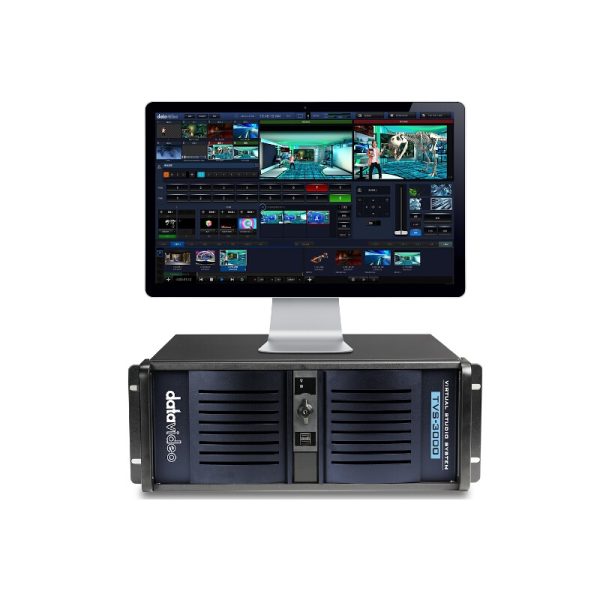

Datavideo TVS-3000 3D Tracking VR/AR 4K Virtual Studio System

Description

Most virtual studio solutions require expensive designated tracking devices or cranes with built in encoders. These devices are very expensive and require trained and skilled personnel. Datavideo TVS-3000 uses cost effective trackers from HTC which are also being used in VR setups. These tracking devices can be mounted on your regular crane and deliver perfect results while not breaking the bank!



Features:

Support 4K UHD resolution input and multiple input configurations:
Datavideo TVS-3000 Supports up to 8 channels of full HD or 2 channels of 4K mixed resolution input signals, unlimited streaming media input signals with multiple video formats, and input signals from DirectShow protocol device to achieve multi-channel video switching.

3D tracking with AR technology:
Datavideo TVS-3000 incorporates the most advanced AR technology into virtual studios.
With the HTC Tracker application, it can easily overlay 3D virtual objects into real scene video, and also provides interaction with the AR object through real-time positioning.

Smart 3D tracking crane:
Replace the traditional tracking crane with low-cost and easy-to-operate advanced 3D tracking crane. The path, panning speed, and shooting time of the camera movement can be adjusted in real-time. The user can set up to 42 virtual shots with different 3D positions and angles in the same scene.

Supports NDI technology:
Datavideo TVS-3000 Supports NDI streaming protocol, no need to set an IP address in intranet transmission, you can simply search for NDI signal sources on your local network and provide two-way transmission.

Applied to the TVS- 3000, the function can be used to transmit different contents such as the browser interface, PPT, image, video as the input source in the virtual set or graphic layout, or can be used to send the live broadcast signal of the program to view from the local network.

Professional graphic layout function:
Datavideo TVS-3000 supports built-in graphic layout that combines input signals, video, images, text, and other contents as a complete editing file. You can choose from any image or video as a background, and add on multiple text content from free subtitle templates.

RMC-285 control panel included:
RMC-285 control panel included for live virtual show and cameras control. Come with 10 function keys (F1-F10), can help to set quick animation, change scene or media content. Making production easier.

Optional Tracking Device Camera Crane:
When using the HTC Tracker for tracking, it is recommended to use a small to medium camera crane for better camera shooting angle variability.

With the crane, it can achieve a larger movement than the handheld camera, and its more stable and easier to control.

HTC Base Station:
Powers the presence and immersion of virtual reality by helping the HTC tracker track their exact locations. Features wireless syncing.

HTC Tracker:
Features multiple sensors, HTC tracker offers 360-degree tracking and real-time camera movement feedback to TVS-3000 which bring out the realistic virtual studio system.

In the virtual studio environment, the 3D virtual object can also be bound to any tracker, so that the user can interact with the tracker to achieve the interaction with the AR object.



In The Box:

1 x TVS-3000A Main Unit
1 x Power AC Cord
1 x USB Mouse
1 x RMC-285 Unit(Include D-Sub 9 PIN Cable + DC 12V power adaptor)
1 x 802.11AC Antenna / or USB dongle
1 x LBK-2



Specifications:

Tracking/Trackless
3D Tracking & TracklessVideo Input
4K mode:
6G-SDI x 2 or 12G-SDI x 1
HD mode:
3G-SDI x 3Video Output
4K mode:
HDMI 2.0 x 1
HD mode:
3G-SDI x 4 + HDMI x 1

Video Input/Output Format
SDI Input/Output:
2160p 60/50/30/25 (Input only)
1080p 30/25
1080i 60/50
720p 60/50/30/25
HDMI Output:
2160p 60/50/30/25
1080p 60/50/30/25
720p 60/50/30/25

Audio Input
Mini Phone Jack x 1
SDI audio embedded

Operation Monitor
DP x2

Tally
Coming Soon

Downstream Key
3

Media
3(DDR)

Virtual Studio
10 & Unlimited download from datavideovirtualset.com

Still Picture
1

Still Text
2

Keyer
Chromakey upto 8CH

Recording
Lossless 4:2:2 (.avi)
H.265 (.mov)
H.264 (.mp4;.wmv)
MPEG-2 (.ts;.mxf)

Live Streaming Protocols
TS over UDP
TS over TCP
RTMP
RTMPS
RTSP

Hard Disk Capacity
4TB HDD + 500G SSD

Dimension (LxWxH)
480 x 470 x 178mm

Weight
13.6 kg

Operating Temp. Range
0~40 °C

Power
AC 100-240V 750W
