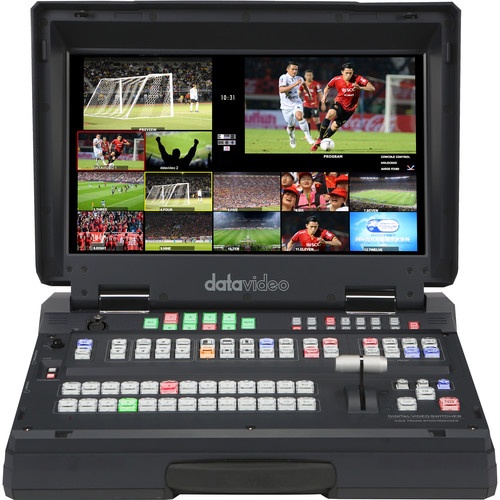

Datavideo HS-2850-8 8-Input HD-SDI And HDMI Hand Carried Mobile Studio

Description

The Datavideo HS-2850 is a cost-effective, 8-channel, 10-bit 1920 x 1080i broadcast-quality mobile hand carry switcher. Featuring 8 digital inputs, it is designed for live events and TV programs that need to blend a variety of video and audio sources. Datavideo HS-2850 is light-weight, portable, and powerful, with features perfect for mobile switching.

As a complete AV package, the HS-2850 HD mobile studio enables users to switch seamlessly between video and audio sources and blend high-quality digital content on the fly.

Advanced features include a 17.3-inch video monitor which displays multiple sources, as well as preview and program.

The system is equipped with an eight-way intercom system and is supplied with four belt packs for effective communication between the whole production crew.

The Datavideo HS-2850 is ideal for TV and video professionals working in outside broadcast or temporary video studios, such as theaters or conference centers. The HS-2850 is also a great value solution for the worship, education, and AV markets.



Features:

Supports 12 HD or SD Inputs in a variety of configurations:
HD Mode: (1) 12 HD-SDI , (2) 9 HD-SDI 3 HDMI
SD Mode: (1) 12 SD-SDI , (2) 9 SDI 3 HDMI
6 user-defined output options on 3 SDI output channels.
1 HDMI output for multi-view monitoring
4x XLR Analogue Audio Inputs, 2x XLR Analogue Audio Outputs,
User defined and positioned dual PIP.
Two DSK with a set up choice of basic Luma key or alpha channel.
Built-in title overlay system (TC-200) that works with CG systems.
Cut, Mix and Wipe with border
Logo and Clock on screen
XPT (Cross Point Assignment)
Audio delay for each de-embedded audio source.
SMPTE/ EBU Audio selectable via OSD.
Black burst PAL or Tri-Level Sync Reference.
Tally, GPI support
Build in 8CH Intercom system
One 17.3-inch with a resolution of 1600×900 dots



In The Box:

1 x HS-2850 Unit
1 x AD Switch DC 12V with AC Cord
1 x CB-41 / XLR to XLR Cable
4 x CB-3 / XLR cable
1 x USB Light
1 x Goose neck MIC
4 x Headphone Microphone
4 x ITC-100SL
4 x Tally light
4 x Velcro



Specifications:

Video Standard
HD & SDVideo Format
1080p 25/29/30/50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz

Input Routable / Crosspoint
All 12, repeatable

Video Input
Standard: 8x SDI, 2x HDMI
Max: 12x SDI, 3x HDMI

Computer Graphic Interface
Max 3 via HDMI

Down-converted Output
3x SDI

Video Output
3x SDI assignable: PGM, PVW, AUX & Clean Out
1x HDMI assignable: PGM & multi-view

Audio Input
4x Balanced XLR

Audio Output
2x Balanced XLR

Embedded Audio Support
Input up to 16 channels,
Output 4 channels

Audio Delay Calibration
Up to 8 frames

A+V Switching
Yes

USK
N/A

DSK
2, support Lumakey & Linear key (Key / Fill)

Picture in Picture
2

Logo Insertion
2 (or 1 logo + 1 clock)

Title Creator
Yes, CG-200 software free download

Built-in Audio Mixer
N/A

Built-in Monitor Display
17.3” HD TFT LED backlit, 1920×1080 pix

Built-in Intercom & Tally
8 channels (4 belt-packs incl.)

Special Features
Built in TC-200 CG interface

Dimension (LxWxH)
455 x 355 x 134 mm

Weight
18.7 Lbs (8.5 kg), Reinforce Plastic Case

Power
DC 12V, 6A

Operating Temp. Range
0~40 °C

Options
CB-22H/23H/46/47/60/61/62
