Datavideo HS-1600T Mark II 4-Channel HD/SD/HDBaseT Portable Video Streaming Studio
$12,578.60
- Description
Description
Bring your broadcast mobile with this HS-1600T Mark II 4-Channel HD/SD/HDBaseT Portable Video Streaming Studio from Datavideo. This mobile studio utilizes HDBaseT technology to control up to three Datavideo PTZ cameras while streaming H.264 video to the web. It features three HDBaseT inputs that can control connected cameras and accept video inputs, as well as one HDMI input to add an additional video source. Three HDMI program outputs allow you to connect to monitors to display your program, one HDMI is for graphics output, and a streaming RJ45 LAN output connector lets you stream live to the Internet using a minimum Cat 6 cable. Depending on the data rate of your stream, you can also record to an optional SD card.

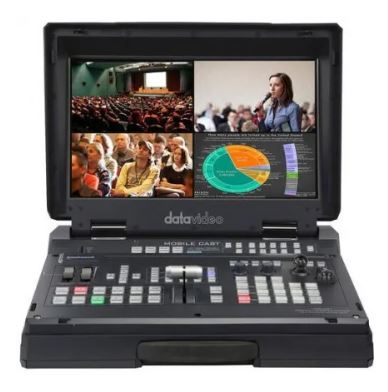

The HS-1600T Mark II is built into a suitcase-like form with a 17.3″ TFT LCD monitor with 1920 x 1080 resolution built into the lid. The rest of the unit features all the switcher controls, including a T-bar for transitions, a joystick, audio sliders, and a host of buttons for controlling your PTZ cameras, inputs, program outputs, and streaming video. There are also 2RCA and XLR audio inputs to mix analog audio into your program.
The monitor supports multiview mode, while the HDMI and streaming output support your program output. The switcher also supports popular mix effects, including picture-in-picture, wipe, mix, and fade, and it incorporates one upstream keyer. It can also send red and green tally signals via the built-in tally connector. The built-in real-time encoder enables live streaming, and you can stream and record your program at the same time.
In the Box:
Datavideo HS-1600T Mark II 4-Channel HD/SD/HDBaseT Portable Video Streaming Studio
56V Power Supply
AC Power Cord
3 x Cat 6 Ethernet Cable (55″)
Specifications:
-
Effect Types 3 x Graphic, Transition, Luma Key Audio Mixing 4-Channel Mixing
Processing
Switching Type Pushbutton, T-BarAudio Processing 48 kHz / 16-Bit
Input
Number of Video Input Sources 4Video Input Connectors
1 x HDMI Female
3 x RJ45 (HDBaseT) FemaleInput Video Format HDMI / RJ45
1080p at 50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fpsAudio Input Connectors
2 x 3-Pin XLR Stereo Analog Female
1 x 2RCA Stereo Analog FemaleInput Audio Format Analog: 48 kHz / 16-Bit
Embedded Audio Input HDMI: 2-Channel (per Input)
RJ45: 2-Channel (per Input)
Output
Video Output Channels 4Video Output Connectors
3 x HDMI Female (Program)
1 x RJ45 (HDBaseT) Female
1 x RJ45 FemaleOutput Video Format HDMI / RJ45
1080p at 50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fpsAudio Output Connectors 1 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Output Audio Format Analog: 48 kHz / 16-Bit
Embedded Audio Output HDMI: 2-Channel
RJ45: 2-Channel
Multiview Output Yes
Connectivity
Other I/O 1 x DE-15/DB-15 Tally OutputHDCP Support None
IP Video H.264:
1920 x 1080 at 60p (10 Mb/s) Encoding
IP Audio AAC-LC: 32 to 384 Kb/s Encoding
Transport Protocols TCP/IP, RTMP, RTMPS, RTSP, TCP, UDP
Simultaneous Streams 1 Streams
Recording Media 1 x SDXC, SDHC (UHS-I [104 MB/s])
Recording Modes 1920 x 1080p (MP4 via H.264/AVC)
Display
Display Size 17.3″Screen Resolution 1920 x 1080
Power Connector 1 x 4-Pin XLR (48 VDC at 4.1 A) Input
Environmental
Operating Temperature 32 to 104°F / 0 to 40°CGeneral
Dimensions 17.9 x 14 x 5.3″ / 45.5 x 35.5 x 13.4 cmWeight 17.2 lb / 7.8 kg
