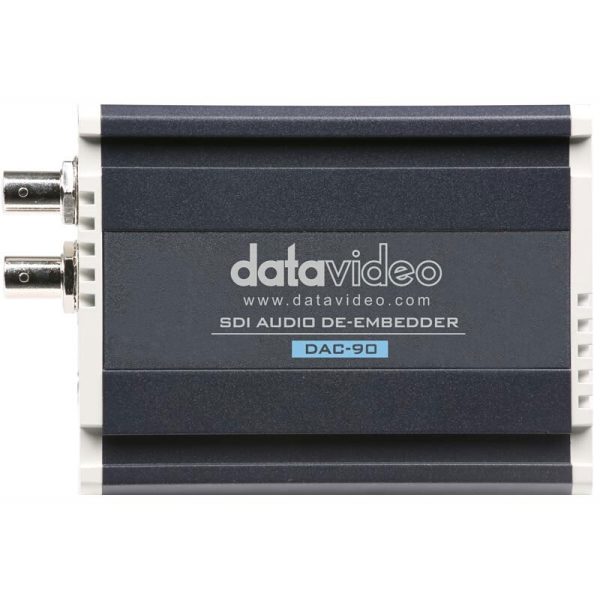

Datavideo DAC-90 SDI Audio De-Embedding Box
$512.30
- Description
Description
The SDI Audio De-Embedding Box from Datavideo allows the user to de-embed 16 analog audio signals (four at a time) from the SDI video signal. It features 3G/HD/SD-SDI to support up to 1080p60 video format and automatically detects and switches between different formats. In addition, 4 mini XLR audio connectors are provided to output analog audio to audio devices such as monitors, recorders, switchers, and audio mixers. SMPTE and EBU settings are available on the audio box and assignments of the de-embedded audio signal are set using the built-in DIP switches.
Features:
Audio de-embedding from SDI signal
Automatic detection of 3G, HD, and SD signals
4 analog Mini XLR audio outputs
Assignable de-embedded audio signals
Audio level indicator display
Switchable SMPTE and EBU audio levels
Control via DIP switches
In the Box:
1 x DAC-90 product
1 x AD Switch DC 12V
2 x Mini XLR to male XLR cable
Specifications:
SDI Video Input
3G/HD/SD-SDI x 1
SDI Video Output
3G/HD/SD-SDI x 1 (Re-clocked Loop through)
Analog Audio Output
Mini XLR (Balanced) x 4
Indicator
Power LED x 1 Audio Level LED : 4 rows
Updates and Configuration
Mini USB x 1
Audio Format Selection
SMPTE, EBU
Dimension (LxWxH)
112 x 85 x 45 mm
Weight
0.4 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 0.5A
